LM 900

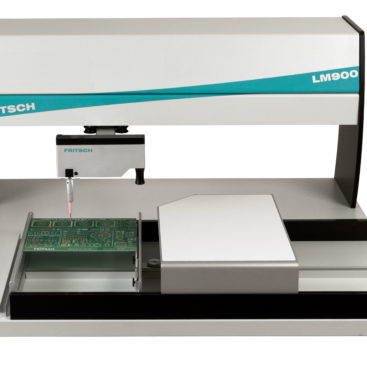

The LM900 is the smallest of the range for the cost-efficient entry. The LM900 ownes all basics of a pick and place
system but waives a control unit and more options. Therefore the LM900 has an unbeatable value for money. A vacuum pump activates automatically the nozzle to pick the components. While placing the vacuum is mechanical interrupted. By means of a spring in the assembling head it is pushed up and the vacuum activated again.

Simple Operation
The LM900 was designed to be used solely for picking and placing. Special attention has been paid to the operator
having to concentrate only on the important aspects of SMD assembly, namely placement. This increases the productivity immensely.

Unsurpassed Cost/Benefit Ratio
The LM900 has all the important features of a Pick & Place Machine but without some extra options. This made it
possible to produce such a good value machine.

Ergonomic
Even the simplest of the Pick & Place Machines is equipped with the renown light FRITSCH guides which makes it easy to place SMDs accurately. The controls are arranged ergonomically. The LM900 thus not only looks after your PCBs but also your staff.

Flexibility of Feeder System
All LM900s are equipped with the FRITSCH Rail System. A wide range of feeders can be fixed quickly and replaced as complete sets or kits. The whole range of SMDs can be handled: Mini and Micro Melfs, SO, PLCC, Fine Pitch Devices and Chips.

Technical details

  • Placement rate from an experienced operator is 300-600 SMDs/hour.
  • Dimensions: 600 mm x 600 mm x 230 mm
  • max. throat: 600 mm x 1100 mm x 230 mm
  • max. PCB size: 440 mm x 245 mm
  • max. placement area: 350 mm x 245 mm
  • lift of assembling head: 26 mm

LM 900

LM 900

The LM900 is the smallest of the range for the cost-efficient entry. The LM900 ownes all basics of a pick and place
system but waives a control unit and more options. Therefore the LM900 has an unbeatable value for money. A vacuum pump activates automatically the nozzle to pick the components. While placing the vacuum is mechanical interrupted. By means of a spring in the assembling head it is pushed up and the vacuum activated again.

Simple Operation
The LM900 was designed to be used solely for picking and placing. Special attention has been paid to the operator
having to concentrate only on the important aspects of SMD assembly, namely placement. This increases the productivity immensely.

Unsurpassed Cost/Benefit Ratio
The LM900 has all the important features of a Pick & Place Machine but without some extra options. This made it
possible to produce such a good value machine.

Ergonomic
Even the simplest of the Pick & Place Machines is equipped with the renown light FRITSCH guides which makes it easy to place SMDs accurately. The controls are arranged ergonomically. The LM900 thus not only looks after your PCBs but also your staff.

Flexibility of Feeder System
All LM900s are equipped with the FRITSCH Rail System. A wide range of feeders can be fixed quickly and replaced as complete sets or kits. The whole range of SMDs can be handled: Mini and Micro Melfs, SO, PLCC, Fine Pitch Devices and Chips.

Technical details

  • Placement rate from an experienced operator is 300-600 SMDs/hour.
  • Dimensions: 600 mm x 600 mm x 230 mm
  • max. throat: 600 mm x 1100 mm x 230 mm
  • max. PCB size: 440 mm x 245 mm
  • max. placement area: 350 mm x 245 mm
  • lift of assembling head: 26 mm
