Selective Conformal Coating – Protective coating of electrical components

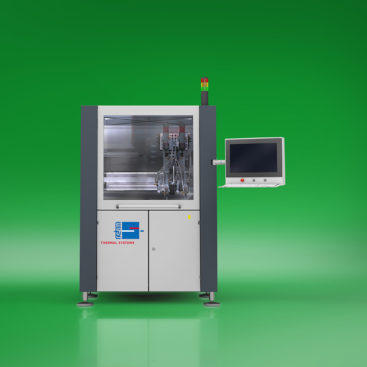

The new Protecto coating system was developed to satisfy your demands for highest quality, stability and productivity for automatic in-line coating tasks.

Particular emphasis is placed on maintainability, intuitive programme configuration and ultra-flexible equipment that can be adapted to customer requirements.

The patented Stream-Coat® nozzles measuring up to 100 mm long and only 2.4 mm thick enable a protective coating between tightly packed, tall components. This means expensive and time-consuming manual re-coating is a thing of the past.

Furthermore, different application methods such as dispensing, spraying or jetting can be achieved “on the fly”, without changing the applicator and without splatters. Even areas under components can be coated using the connectible manifold cut-out on the Stream Coat® nozzles. The manifold cut-out does this by pushing the coating material under the component. Up to four different, selective coating tasks can be performed effortlessly with up to four coating applicators in multiple applications.
