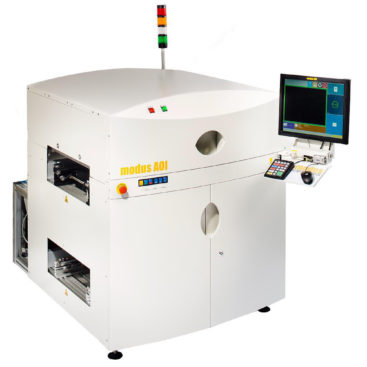

modusAOI S1-IDN-R

• Operating Range 420 x 540 mm (16.53 x 21.26 in.)
• Twin system for simultaneous inspection for both sides of PCB.
• Component clearance: top up to 100mm (4 inch) bottom side 50mm (2 inch).
• Capturing barcodes und Data-Matrix-Codes in any position and number of its advantage
• Simultaneous report of the results from both sides
• NUTEK-transport module offers a system length of 1200 mm (47.3 inch)
• Integrated down conveyor
• Two system computers including the modusAOI-Software are included in the delivery
• Also available as IUA (inspection from below) and IOA (inspection from above)
