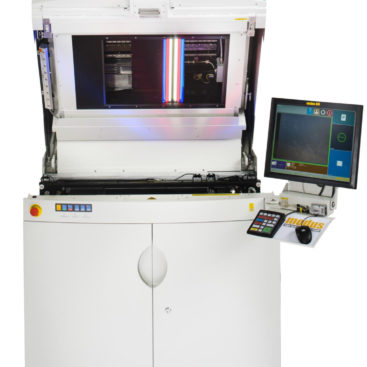

modusAOI S1-IDN

  • Operating Range 420 x 540 mm (16.53 x 21.26 in.)
  • Twin system for simultaneous inspection for both sides of PCB.
  • Component clearance: top up to 100mm (4 inch) bottom side 50mm (2 inch).
  • Capturing barcodes und Data-Matrix-Codes in any position and number of its advantage
  • Simultaneous report of the results from both sides
  • This transport module offers a system length of 1200 mm (47.3 inch)
  • Two system computers including the modusAOI-Software are included in the delivery
  • Also available as IUA (inspection from below) and IOA(inspection from above)

ModusAOI S1-IDN

modusAOI S1-IDN

  • Operating Range 420 x 540 mm (16.53 x 21.26 in.)
  • Twin system for simultaneous inspection for both sides of PCB.
  • Component clearance: top up to 100mm (4 inch) bottom side 50mm (2 inch).
  • Capturing barcodes und Data-Matrix-Codes in any position and number of its advantage
  • Simultaneous report of the results from both sides
  • This transport module offers a system length of 1200 mm (47.3 inch)
  • Two system computers including the modusAOI-Software are included in the delivery
  • Also available as IUA (inspection from below) and IOA(inspection from above)
