RapiTrim-P-UV (355 nm)
RapiTrim-P (355 nm) UV laser resistor trimming systems with probe card measurement
The RapiTrim-C UV laser resistor trimming systems with probe card testing is designed for multi-purpose and specialty applications. These include the trimming of thick- and thin-film resistors with narrow kerf, or applications with additional processing capability for materials such as copper, polyimide, ceramic (green tape, stackups or fired), FR4 and others.

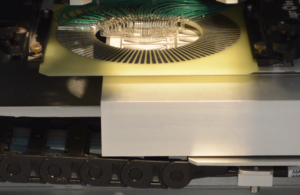

UV laser resistor trimming systems with probe card measurement are compatible with industry standard cards, using the highest performance probe card handler for high volume production. This advanced probe card handler with 4 axis servo control provides high speed step-and-repeat performance. Custom probe fixtures are also available for unique applications in passive and active trim configurations.
UV Laser Resistor Trimming System Features
RapiTrim systems include automated DXF import to speed job creation, a modern user interface, and other advanced features like unique beam position calibration. PPI can configure systems with standard or custom probe fixtures for both passive or active resistor trims.
System Features Include:
- Intuitive Graphical User Interface with ProSys operating software
- Advanced Beam Positioning and Laser Pulse Control provide high throughput, accuracy, and process stability
- High Accuracy, High Bandwidth Real-Time Measurement system
- Auto-Calibration functions ensure repeatable quality
- Extensive System Diagnostics continuously monitor all critical components and machine performance
- Sealed Beam Delivery protects optics from process debris, extending component lifetimes
- Touchscreen operation (full HD size)
