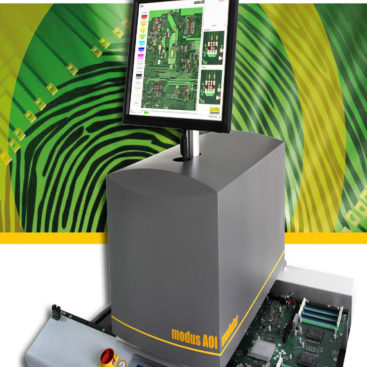

ModusAOI modular iScan 420 T

• Operating Range 420 mm x 540mm (16,53 x 21,26 in.)
• Resolution: 600 / 1200 dpi, (40µm / 20µm)
• Single sided top view system for all inline inspection on PCB.
• Component clearance: Standard is 30 – 50 mm (ca. 1,2 – 2 inch) for conformal coating 100mm (4 inch) possible (custom design).
• Capturing barcodes und Data-Matrix-Codes in any position and number of its advantage
• Simultaneous report of the results
• Nutek standard conveyer with encoder required
• All in one & Plug and Play System with integrated Control unit and inter face for SMEMA, PLC, etc…
