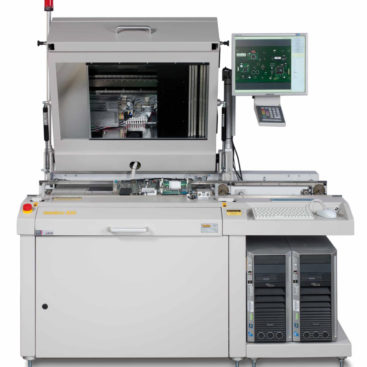

modusAOI S1-IDA-A

• Operating Range 420 x 540 mm (16.53 x 21.26 in.)
• Twin system for simultaneous inspection for both sides of PCB.
• Component clearance: Standard is 30 – 50 mm
  (ca. 1,2 – 2 inch) for conformal coating 4 inch possible (custom design).
• Capturing barcodes und Data-Matrix-Codes in any position and number of its advantage
• Simultaneous report of the results from both sides
• ASYS-transport module offers a system length of 1590 mm (two segments with 1060 mm and 530 mm)
  (59.0 in. or 62.6 in. x 47.2 in.)
• Two system computers including the modusAOI-Software are included in the delivery
• Also available as IUA (inspection from below) and IOA (inspection from above)
