Reel to Reel System

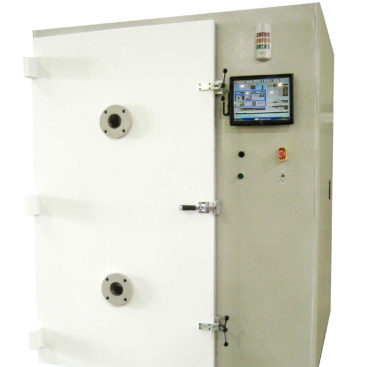

The PE-2000R reel to reel plasma system is specifically fitted with a continuous feed drive and take up system to accomodate continuous  flexible substrates and roll/reel mounted materials. The system can accept web width from 2″ to 24″ with spindle diameter of 10″. Tension controlled is accomplished by a pivoting arm 3″ diameter in contact with the web in the process chamber coupled with a counterweight system outside the chamber isolated by a magnetic fluid feedthrough. It is actively controlled by the subsystem transport control. Virtually any tension can be set by changing the external  counter weights outside the chamber.
