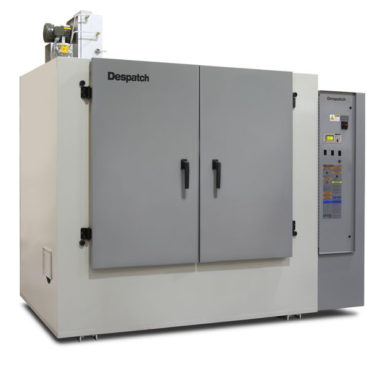

RFD Class A ovens are specially designed to meet NFPA 86 requirements for applications that include flammable solvents or large amounts of moisture removal. They include a pressure relief panel, purge timer and exhaust fan. These ovens feature horizontal recirculating airflow to ensure exceptional temperature uniformity throughout the oven. A high-volume fan circulates air through perforated, stainless steel walls to create a constant horizontal airow across all sections of the oven. The result is proven reliability in demanding production and laboratory applications, such as curing, drying, stress relieving, aging, and other process-critical applications.

FEATURES AT A GLANCE

• Temperatures up to 343°C (650°F) (Models available with temperatures up to 538°C (1000°F))
• Class A package meeting NFPA 86 requirements for flammable solvents
• Three models from 4.2 to 35 cu. ft. (119 to 991 liters)
• Horizontal recirculating airflow
• Protocol 3TM control with large LCD display, integrated data logging capabilities and USB port for simple oven set-up and data export.
• 304 stainless steel interior
• 5-year heater warranty
• End of cycle and high-limit indicators
• Audible and visual high-limit alarm
• RS485 Modbus communication
