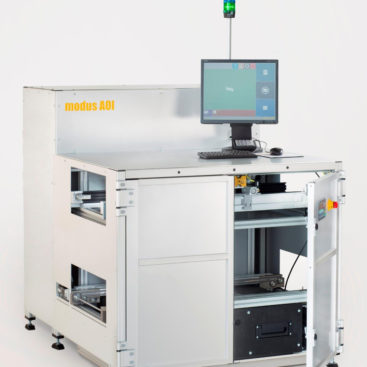

modusAOI S1-ITK-R (fully equipped)

• Operating Range 420 x 540 mm (16.53 x 21.26 in.)
• Modular triple system for THT inspection
• Top -Top scan unit for Component/Barcode check, pre soldering.
• Top – Bottom scan unit for pin check, pre soldering
• Bottom – Up scan unit, THT inspection below down conveyor, post soldering.
• Component clearance: top side up to 100mm (4 inch) bottom side 50mm (2 inch).
• Capturing barcodes und Data-Matrix-Codes in any position and number of its advantage
• Simultaneous report of the results.
• No additional foot print required
• All variants possible.
