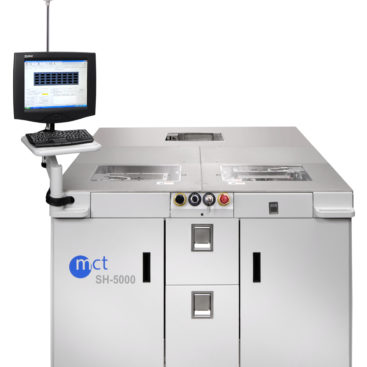

The SH-5000 Strip Test Handler
Proven performance in high volume manufacturing
The MCT SH-5000 is our 5th generation strip test handler. It provides dramatically improved performance and greater flexibility at a lower cost than previous models. It is a field proven machine, with over 200 in use in high volume manufacturing applications worldwide.
The SH-5000 is a universal machine that can handle virtually any type of semiconductor device package in lead frame, strip or panel format; including SO, TSSOP, PDIP, QFP, TQFP, CSP, BGA, QFN and DFN to name only a few. It supports single to massively parallel site testing and provides the best throughput in the industry!
The SH-5000 is a full tri-temp capable handler that can operate from -55°C to +160°C. The standard configuration provides ambient and hot testing. Cold testing can be accomplished by simply attaching our optional external chiller. No modifications to the handler are required. And best of all, for cold testing, the SH-5000 utilizes a closed circulation chiller that uses a refrigerant, so no troublesome LN2 is ever required. Our innovative conduction heat transfer system eliminates the need for expensive pre-soak chambers and brings parts to the desired set temperature 8X to 10X faster than competitive systems that use convection heat transfer. The result…you are almost never soak limited with the SH-5000!
The SH-5000 has all of the options you would expect from the world’s leading strip test handler; automatic contact cleaning, full ESD protection, stacked and/or slotted magazines plus the industry’s leading software for electronic strip map management and data analysis.
It all adds up to make the SH-5000 the industry standard for strip test applications. Now you can lower your cost of final test by 50% or more and help guarantee that your test operation stays solidily in the black!
