LM Dispense

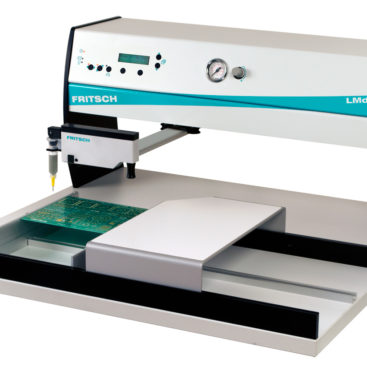

The LMdispense is a simple FRITSCH dispensing machines and can be used in any situation: from laboratory use to
production. There are two different dispenser systems available for all manipulators.
A simple time-pressure dispenser system and a microprocessor-controlled dispenser system, which records the
influencing factors such as temperature, the fill level of the syringe and the viscosity of the medium. By recording the
additional factors, reproducible results are achieved even in the case of small output quantities. Besides soldering paste and adhesive, other media can also be dispensed. Both dispenser systems automatically switch on the dispensing process as soon as the slightly slanted dispenser needle comes into contact with the PCB. The vertical syringe ensures that the dispenser needle does not slip sideways when touching the PCB. There are nine different times for dispensing available for dispensing on different sizes of pads, which can be selected directly in the dispenser menu. The individual times can be preset as required. In addition, the operator can apply in a simple way lines for the adhesion of mechanical components or underfill with the line dispenser module. The line dispenser is controlled by a foot switch.

Double dispenser head
This option enables the simultaneous dispensing of two different media such as soldering paste and adhesive, for
example. The control also makes three adjustable dispensing times available for the second medium in order to be able to dispense onto different sizes of pads both fast and easily.

Technical details

• Dispensing rate from an experienced operator  is 300-600 dots/hour.
• Dimensions: 600 mm x 600 mm x 345 mm
• max. throat: 600 mm x 1100 mm x 345 mm
• max. PCB size: 245 mm x 440 mm
• max. dispensing area: 450 mm x 300 mm
