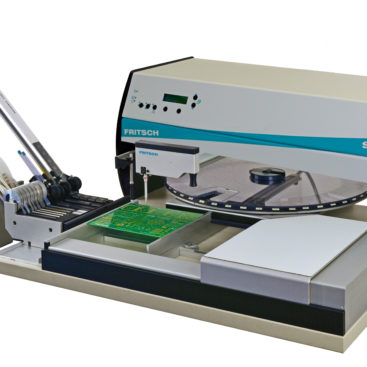

SM902 Professional

The SM902 professional offers – besides 100% placement security and a great deal of comfort for the user – a higher
assembly output. In contrast to the SM902 required components are offered by motor-driven feeders. Every feeder
shows with the dedicated LED the component which has to be picked. All needed informations are displayed in the
placement area and a changing view between monitor and PCB isn‘t necessary. For defining position coordinates, CAD data can be directly imported or the positions can be teach manually.

Motor-driven Eye
The motor-driven eye shows the user the exact pick & place position. While assembling the mechanism
always drives to the next position. The user has only to insert the stift into the eye and the component is at the
right position. The direction-LEDs display just at that moment the polarity of the component on the PCB. The
permanent control of all operating elements and the cooperation with the motor-driven eye results a pick &
place safety of 100%.

Picking-LEDs
A separate LED for every feeder enables the fast and error-free picking of components.

Direction-LEDs
While picking, the directional LEDs on the pick up head show the hand rotation needed for polarized components.

Technical details

  • Achievable Placement rate from an experience operator 600-1000 SMDs/hour.
  • Dimensions: 700 mm x 680 mm x 340 mm
  • max. throat: 700 mm x 1100 mm x 340 mm
  • max. PCB size: 390 mm x 305 mm
  • max. placement area: 373 mm x 233 mm
  • max. lift of assembling head: 26 mm
  • rotation angle: 0-360 grade
  • placement accuracy motor-driven eye: 0.1 mm

SM902 Professional

SM902 Professional

The SM902 professional offers – besides 100% placement security and a great deal of comfort for the user – a higher
assembly output. In contrast to the SM902 required components are offered by motor-driven feeders. Every feeder
shows with the dedicated LED the component which has to be picked. All needed informations are displayed in the
placement area and a changing view between monitor and PCB isn‘t necessary. For defining position coordinates, CAD data can be directly imported or the positions can be teach manually.

Motor-driven Eye
The motor-driven eye shows the user the exact pick & place position. While assembling the mechanism
always drives to the next position. The user has only to insert the stift into the eye and the component is at the
right position. The direction-LEDs display just at that moment the polarity of the component on the PCB. The
permanent control of all operating elements and the cooperation with the motor-driven eye results a pick &
place safety of 100%.

Picking-LEDs
A separate LED for every feeder enables the fast and error-free picking of components.

Direction-LEDs
While picking, the directional LEDs on the pick up head show the hand rotation needed for polarized components.

Technical details

  • Achievable Placement rate from an experience operator 600-1000 SMDs/hour.
  • Dimensions: 700 mm x 680 mm x 340 mm
  • max. throat: 700 mm x 1100 mm x 340 mm
  • max. PCB size: 390 mm x 305 mm
  • max. placement area: 373 mm x 233 mm
  • max. lift of assembling head: 26 mm
  • rotation angle: 0-360 grade
  • placement accuracy motor-driven eye: 0.1 mm
