SM902

The SM902 closes the gap between the LM901 and the semi-automatic machine SM902 professional. Integrated measuring system eliminates wrong placements and relieves the user from errot. Required information like pick-position, place-position and rotation angle of the component are displayed on the monitor. Therefore extensively searching on plans isn‘t necessary. From the beginning the user is guided systematic through the whole project.
The same options are available for the SM902-systems like for the LM901-systems. To further support the user, the
SM902 can be upgraded step by step to the functionality of the SM902 professional with LED display, automatic feeders and an automatically driving eye.

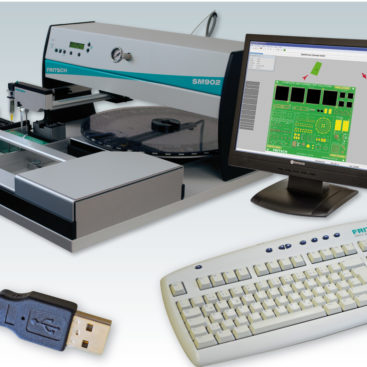

Software
The sophisticated software enables a smooth and fast placement process flow as programming the system to teach the pick positions in PCB is simplified. This greatly improves the efficiency to create the first PCB file and a much shorter time to start your production.

Fast Pick & Place
The simplicity of the assembling process increases the line performance: The user can concentrated exclusively on the pick & place as scanning the placement plan is omitted completely. Comparing to the manipulator the double or triple quantity is reached. The system software optimizes the whole assembling process and more importantly , it is repeatable.

Technical details

• Placement rate from an experienced operator is 400-800 SMDs/hour.
• Dimensions: 700 mm x 680 mm x 340 mm
• max. throat: 700 mm x 1100 mm x 340 mm
• max. PCB size: 550 mm x 310 mm
• max. pick & place area: 440 mm x 310 mm
• max. lift of assembling head: 26 mm
• rotation angle: 0-360 Grade
