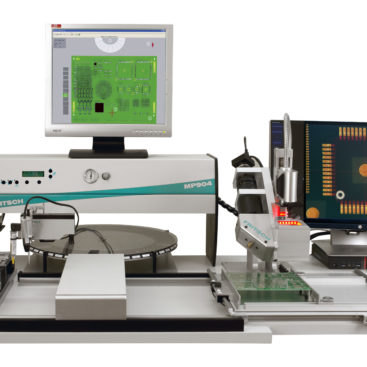

MP904

The universal assembly station MP904 combines an easy and flexible handling, together with highest precision by pick & place of Fine-Pitch. The unrivalled smooth-running guide of the mounting head helps to place the SMDs accurately. When the nozzle comes into contact with the components, the vacuum automatically switches itself on and when placing them, it switches off. The special vision system helps optimally to place BGA and QFN components. The component range is from Chip 0201 up to Fine-Pitch and BGA.

Fine Pitch and BGA placement
The solid construction of the Handling Head insures a highly precise placement of BGA, QFN and Fine Pitch Components. The vision system allows two pictures to be viewed simultaneously. The PCB and the bottom side of the component can be observed at the same time. With the help of a fine adjusting table with micrometer screws, both exposures can be adjusted exactly congruent. An easy and accurate placement of the components is assured. The same options are available for the MP904 like for the LM901. The system is available as pure manual system or as semi-automatic machine.

Technical details

• Placement rate from an experience operator is 300-600 SMDs/hour
• Dimensions: 1200 mm x 700 mm x 510 mm
• max. throat: 1200 mm x 1100 mm x 510 mm
• max. PCB size: 340 mm x 250 mm
• max. placement area: 340 mm x 250 mm
• max. lift of assembling head: 26 mm
• rotation angle: 0-360 grade
